CCTV Tv Video Wall Screen Monitor 550DUNTHB8 Super Narrow Small Gap
The 55-inch LCD splicing screen uses LG 55-inch high-brightness ultra-narrow LED backlight LCD screen with a resolution of 1920 * 1080.
Professional DID LCD display
High-definition: Wuzhou Vision LCD splicing wall uses imported LG IPS LCD display panel with high-resolution design. The entire screen can provide customers with a high-resolution, large-display LCD with a maximum resolution of 1920 * M * 1080 * N A large screen is displayed.
High contrast: Wuzhou Vision LCD DID splicing unit has a dynamic contrast ratio of up to 4500: 1, which achieves sublimation of image sharpness, detail performance, and gray level performance.
High brightness: Wuzhou Vision's LCD splicing wall has a uniform screen brightness, stable and flicker-free images, and a brightness of up to 800cd / m ?, far exceeding ordinary display devices. The picture is still clearly visible under strong light.
Ultra-narrow-edge design: Wuzhou Vision seamless LCD splicing screen with ultra-narrow-edge design is used. The minimum physical stitching is 0.9mm. While it has a large display area, it also has the advantages of thin thickness and light weight.
Stability and reliability: Wuzhou Vision LCD splicing curtain wall is designed for monitoring and display, and supports 7x24 hours and 365 days of uninterrupted use.
Health and environmental protection characteristics: Wuzhou Vision LCD splicing display also has the characteristics of low heat generation, no radiation, no flicker, no eye injury, etc. It is a leading environmental protection and health splicing curtain wall.

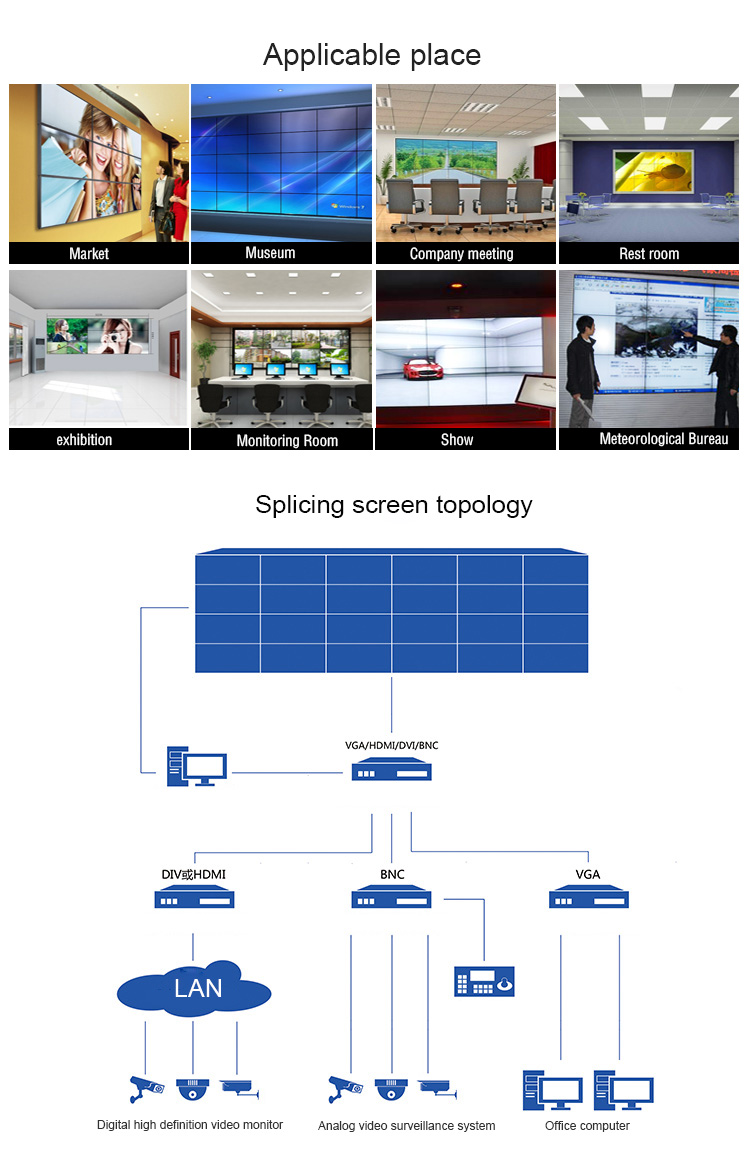

Function of large-screen LCD splicing system: LCD splicing curtain wall can display various types of computer analog / digital signals, composite video signals, color difference signals, etc. on the large screen in high-definition, and realize the functions of signal switching, superposition and combination.
| Screen description | LG 55 inch high-brightness ultra-narrow LED backlight LCD screen |
| Product number | PJ-B551P |
| physical dimension(mm) | 1211.4*682.2*123 |
| Viewable area(mm) | 1209.6*680.4 |
| Resolution | 1920*1080 |
| Contrast | 4500:1 |
| brightness | 700cd/㎡ |
| Stitching gap | 1.8mm |
| Power consumption | 250W/0.5W |
| Response time | 8ms |
| color | 16.7m |
| Dot pitch(mm) | 0.63*0.63 |
| Machine weight(kg) | N W:28.8 N.W:35.5 |
| control method | RS232,TCP/IP,remote control |
| Installation method | Cabinet-type, wall-mounted, ceiling-mounted |
| Viewing angle | 178°/178°(H,V) |
| Stitching combination | Any M rows * any N columns |
| working environment | Operating temperature:0℃ - 60℃ Use moderate:10% - 90% |
| input signal | USB/HDMI/DIV/VGA/AV/AUDIO/RS232/UR |
